Waveshare PoE Ethernet USB HUB HAT with Box ABX Case for Raspberry Pi Zero/Zerow/2, with 1 RJ45 10/100M Ethernet Port, 3 USB Ports Compatible with USB2.0/1.1, 802.3af-Compliant
4.7 (146 items)
Limited Time SaleUS$54.00 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 209095540 | Release Date | 2026/03/29 | List Price | US$36.00 | Model Number | 209095540 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

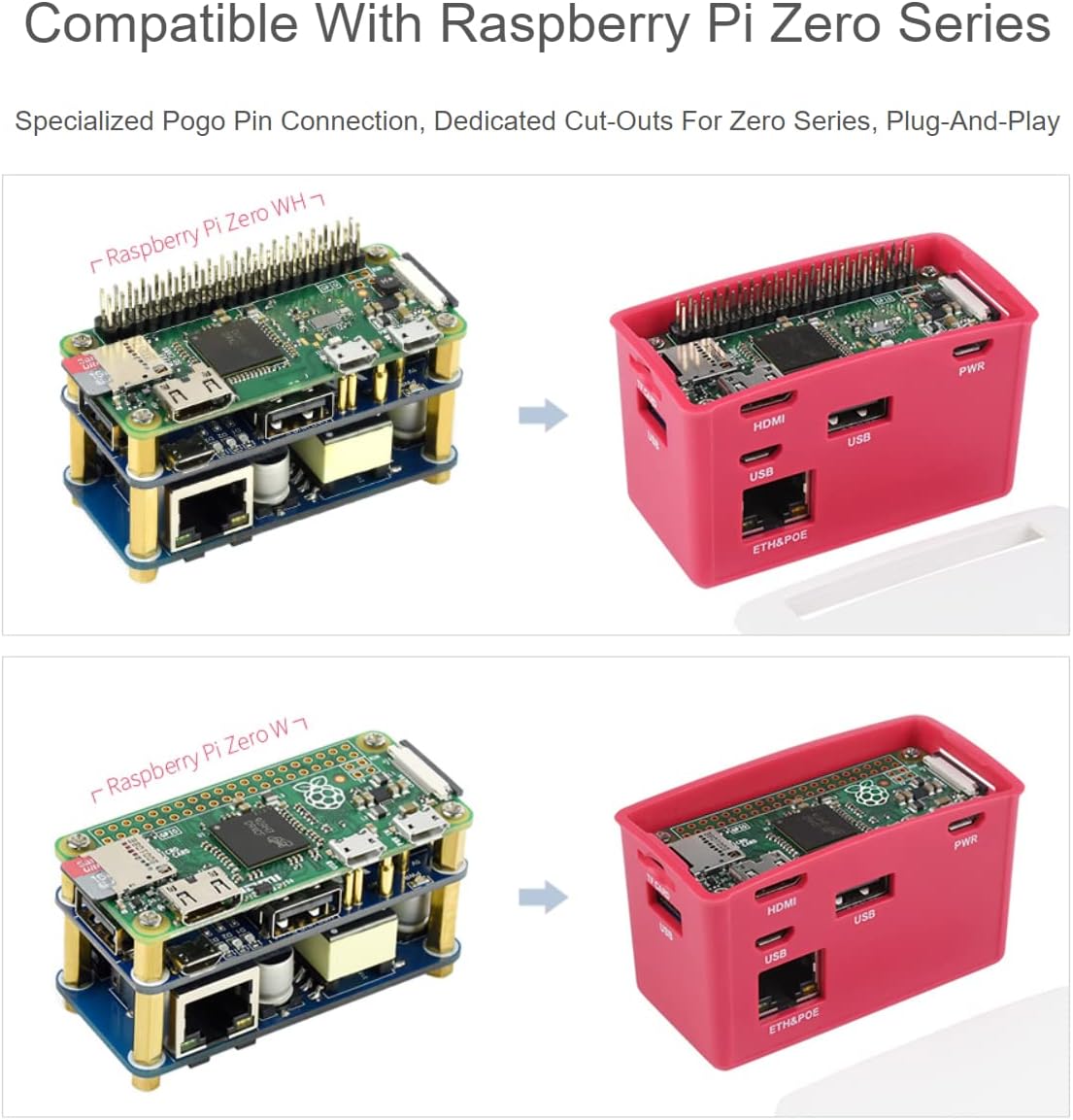

Introdution The PoE-ETH-USB-HUB-BOX is a HUB kit with PoE/ETH/USB HUB HAT inside. It is tailored for Raspberry Pi Zero series, small in size, each cut-out of the case is exactly aligned with the connector. The case adopts classic Raspberry Pi red/white color combination, with quality dull polish surface, effectively keeping the Zero away from dust. By using this small HUB BOX and some proper 802.3af-compliant power sourcing equipments, it is possible to provide both network connection and power supply for your Raspberry Pi Zero in only one Ethernet cable, along with 3x extended USB ports. Features 1.PoE Ethernet / USB HUB BOX For Zero Dull polish surface, well designed, nice & dust-proof,PoE 802.3af-Compliant Ethernet Port | 3x USB 2.0 Ports 2.Compatible With Raspberry Pi Zero Series Specialized Pogo Pin Connection, Dedicated Cut-Outs For Zero Series, Plug-And-Play 3.3x Extended USB 2.0 Ports USB1 ~ USB3, Compatible With USB 2.0 / 1.1 4.Extended Ethernet Port USB To Ethernet Conversion By The RTL8152B Chip, 10M / 100M Auto-Negotiation 5.Two Different Lids, Changing As You Like "Simple Snap" Design, Easy To Change, Allows Attaching Other Zero HATs Specifications POE POWER INPUT-----37V ~ 57V DC in POWER OUTPUT-----5V 2.5A DC out NETWORK STANDARD-----IEEE 802.3af-compliant PoE DIMENSIONS-----72.80 × 37.50 × 45.80 mm Package Content PoE/ETH/USB HUB HAT kit x1 ABS case x1 Rubber feet 4PCS x1 Screws pack x1 Note Development Resources are provided , please contact us to get if you need .
- ★Incorporates RTL8152B Ethernet chip, with 10M / 100M auto-negotiation RJ45 port.
- ★PoE (Power over Ethernet) feature, 802.3af-compliant.Fully isolated SMPS (Switch Mode Power Supply)
- ★ 3x extended USB ports, compatible with USB 2.0 / 1.1.Angle rounded design, smooth hand feeling, "simple snap" case lid
- ★ Quality ABS material, dull polish surface, anti-fingerprint.Comes with two different lids, changing as you like
| Item Weight | 3.52 ounces |
|---|---|
| Manufacturer | Waveshare |
| Country of Origin | China |
| Item model number | PoE ETH USB HUB B with BOX |
| Product Dimensions | 2.87 x 1.48 x 1.8 inches |
